Chlorinated polyethylene (CPE130A) for Magnetic strips

Refrigerator Magnetic Door Gasket (Refrigerator Seal Strip) Product Introduction

1. Definition

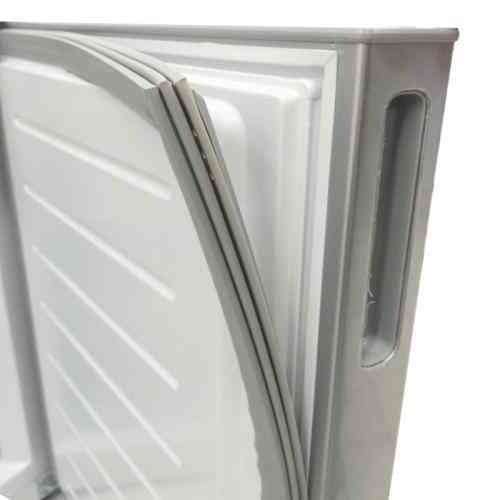

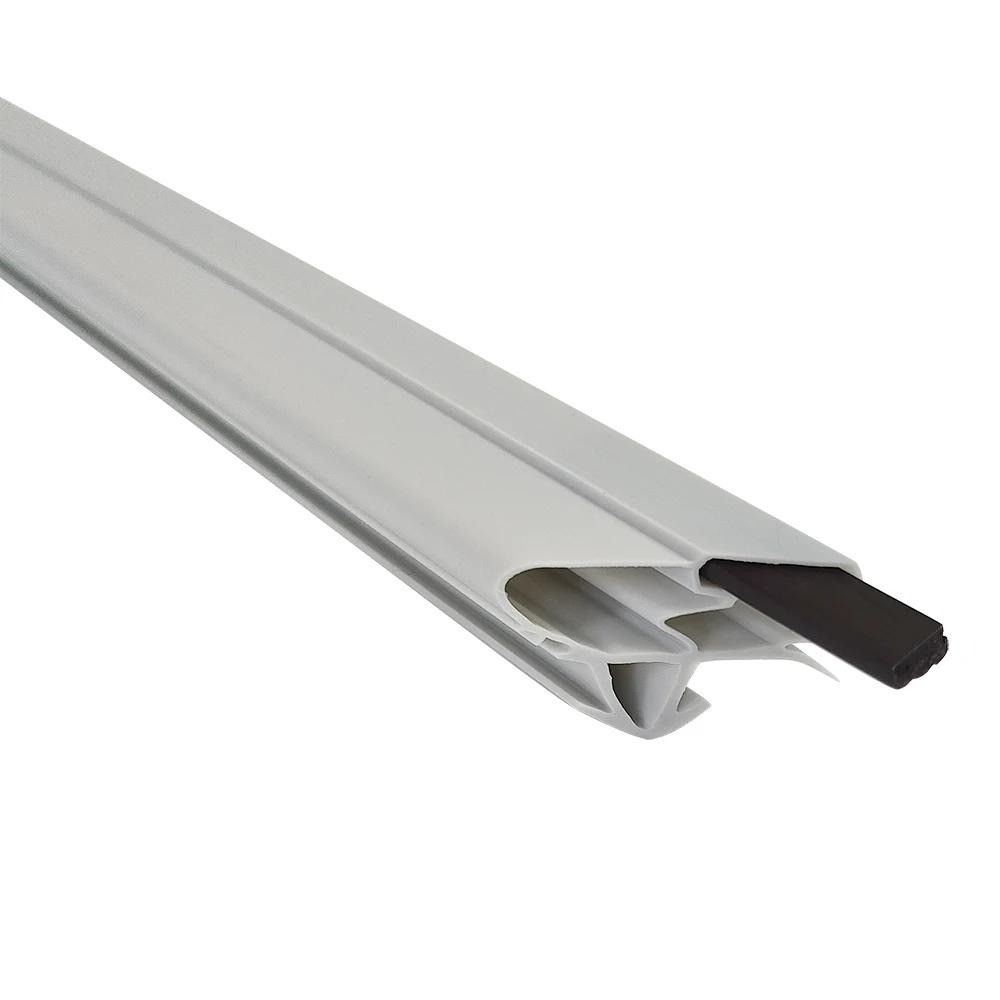

Refrigerator magnetic door gasket, also known as fridge door seal strip, is a core accessory installed around the door edge of refrigerators and freezers. It forms an airtight seal between the cabinet and door. It is extruded composite of two parts: soft PVC outer cover and embedded flexible magnetic strip.

2. Internal Structure

1. Outer layer: Modified soft SPVC with multi-air-chamber hollow design, featuring excellent elasticity and shock absorption. Premium versions adopt EPDM rubber or food-grade silicone for better low-temperature resistance and anti-aging performance.

2. Inner layer: Ferrite flexible magnetic strip, extruded and magnetized with magnetic powder and plasticizer. The magnetic force tightly attaches the door to the steel cabinet frame to eliminate air gaps.

3. Core Functions

1. Energy-saving & Cold Retention: Block cold air leakage and prevent warm humid air infiltration. Damaged gaskets increase compressor workload by 20%-30% and raise power bills; intact seals cut electricity consumption by 15%-25%.

2. Food Freshness Preservation: Stabilize internal temperature, reduce frost buildup, avoid cross-odor and food spoilage.

3. Dust & Moisture Proof: Prevent dust and condensed water from corroding the door frame and mold growth.

4. Noise Reduction & Shock Absorption: Hollow air chambers buffer door closing impact and lower operating noise.

4. Main Material Types

· PVC: Cost-effective, standard for household fridges, slightly prone to hardening under long-term low temperature.

· EPDM Rubber: Wide temperature resistance (-30℃ ~ 120℃), ozone & crack resistant, ideal for commercial freezers.

· Food-Grade Silicone: Odorless, oil & mildew resistant, used in high-end home refrigerators and baby food storage cabinets.

5. Application Range

Household single-door, side-by-side & top-freezer refrigerators, vertical freezers, commercial display coolers, disinfection cabinets and fresh food display cases.

6. Maintenance & Replacement Tips

· Clean regularly with warm water and neutral detergent; avoid steel wool, strong acid or alkali cleaners.

· Replace the whole gasket if it becomes stiff, cracked, weak in magnetism, causes heavy frost or visible light leakage through door gaps.

CPE130A is a kind of chlorinated polyethylene with high Mooney viscosity, very good mechanical property and filling capacity.

Due to low chlorine content, it has good performance in low temperature

Main application: Magnetic strip for refrigerator.

Package : 25 kg PP bags, 1500 KGS on one pallet, 15 tons in one 20’ FCL.
